LED Neon Flex
LED Neon Flex replaces traditional glass neon with a flexible, durable, and energy-efficient silicone-based alternative. It creates the classic neon glow effect with even light distribution, making it perfect for signage, architectural outlines, bridges, building facades, and decorative landscape lighting.
What is LED Neon Flex?

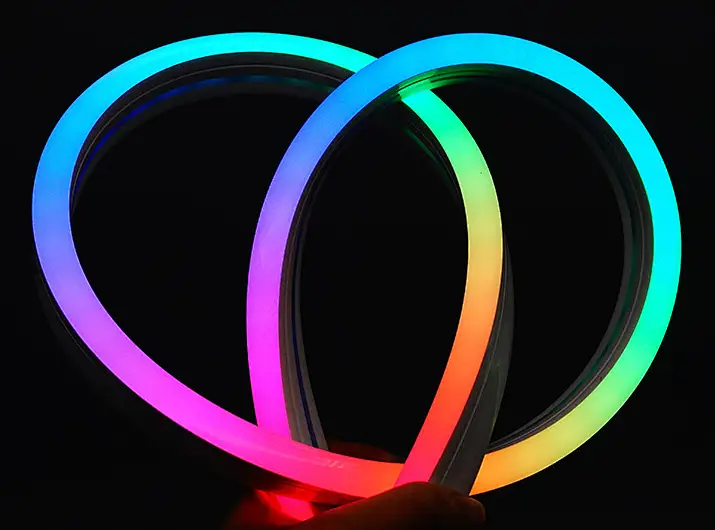

LED Neon Flex is a flexible LED light encased in a UV-resistant silicone or PVC housing that mimics the appearance of traditional glass neon tubes. Inside, an SMD or COB LED strip provides even illumination, while the diffused silicone body creates a smooth, continuous glow without visible LED dots.
Unlike fragile glass neon, LED Neon Flex is shatterproof, bendable, cuttable, and operates at safe low voltage (DC 12V/24V). It uses up to 70% less energy than glass neon and lasts 5x longer.
- Silicone body: UV-resistant, anti-yellowing, rated for outdoor use
- Available in top-emitting, side-emitting, and 360° dome/round profiles
- Bend radius as tight as 20mm for complex shapes and letters
- IP65 / IP67 / IP68 waterproof ratings for outdoor applications
- Single color, RGB, RGBW, and digital addressable options
- Custom colors, sizes, and shapes available for project-specific needs
Top View Neon Flex
Most PopularTop-emitting neon flex directs light upward (perpendicular to the mounting surface), creating a classic neon sign effect. It is the most commonly used profile for wall-mounted signage, architectural outlines, and decorative ceiling/wall features. Available in multiple sizes from slim 6x12mm to standard 10x20mm profiles.
| Parameter | Options / Specification |
|---|---|
| Emitting Direction | Top View (upward, perpendicular to surface) |
| Profile Size | 6x12mm / 8x16mm / 10x20mm / 12x25mm |
| LED Source | SMD 2835 / COB |
| Power | 8W / 10W / 12W / 14W per meter |
| Voltage | DC 12V / DC 24V |
| Color Options | Single Color / RGB / RGBW / Digital (Addressable) |
| CRI | Ra>80 / Ra>90 |
| IP Rating | IP65 / IP67 / IP68 |
| CCT Range | 2700K – 6500K |
| Beam Angle | 120° |
| Bend Radius | Min 20mm – 50mm (varies by size) |
| Bend Direction | Horizontal (left-right) |
| Cutting Unit | 25mm / 50mm |
| Housing Material | Silicone / PVC |
| Operating Temp | -30°C to +50°C |
| Lifespan | 50,000 hours |
| Certification | CE, RoHS, UL (optional) |
Side View Neon Flex
Wall WasherSide-emitting neon flex directs light sideways (parallel to the mounting surface), making it ideal for wall-washing effects, contour lighting along building edges, stairway lighting, and ground-level architectural accents. The side-emitting design creates a dramatic grazing light effect that emphasizes surface textures.
| Parameter | Options / Specification |
|---|---|
| Emitting Direction | Side View (sideways, parallel to surface) |
| Profile Size | 6x12mm / 8x16mm / 10x18mm / 12x20mm |
| LED Source | SMD 2835 / COB |
| Power | 8W / 10W / 12W per meter |
| Voltage | DC 12V / DC 24V |
| Color Options | Single Color / RGB / RGBW / Digital |
| CRI | Ra>80 / Ra>90 |
| IP Rating | IP65 / IP67 / IP68 |
| CCT Range | 2700K – 6500K |
| Beam Angle | 120° |
| Bend Radius | Min 25mm – 60mm |
| Bend Direction | Vertical (up-down) |
| Cutting Unit | 25mm / 50mm |
| Housing Material | Silicone / PVC |
| Operating Temp | -30°C to +50°C |
| Lifespan | 50,000 hours |
| Certification | CE, RoHS |

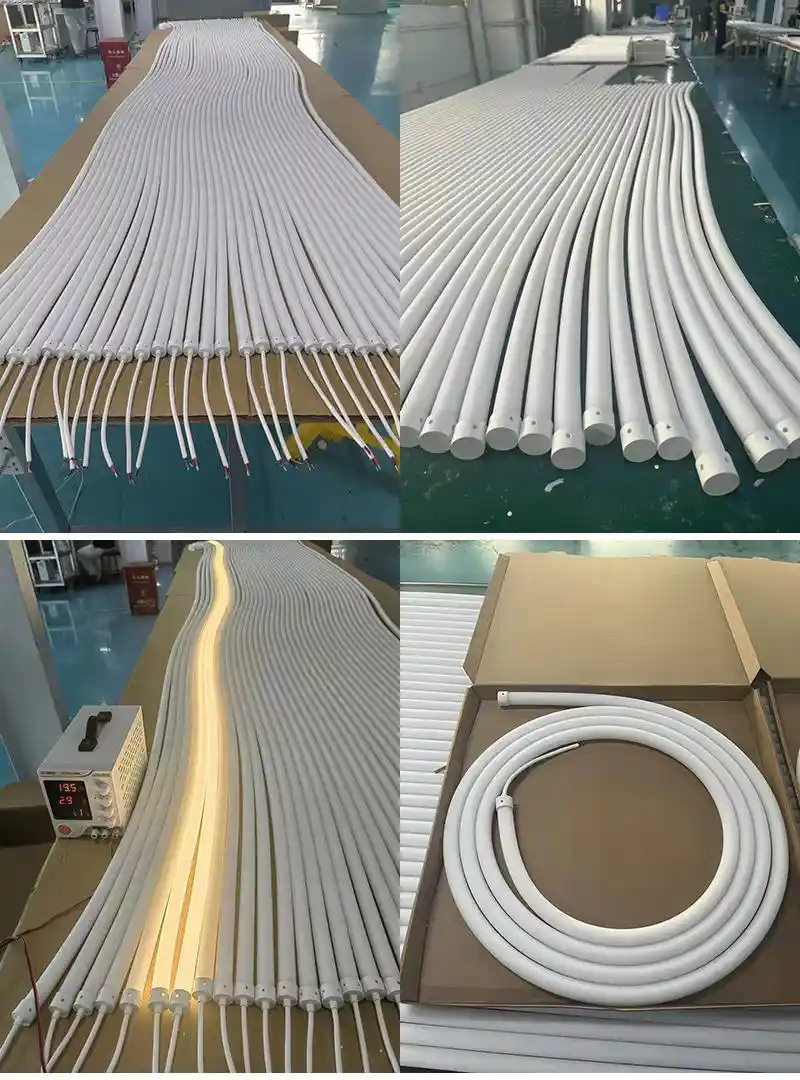

Dome / 360° Round Neon
360° GlowThe dome-shaped and 360° round neon flex emit light in all directions, closely replicating the look of traditional round glass neon tubes. This profile is perfect for suspended installations, handrail lighting, and decorative pendants where the neon is visible from all angles.
| Parameter | Options / Specification |
|---|---|
| Emitting Direction | 360° (all directions) / 270° Dome |
| Profile Size | ⌀14mm / ⌀18mm / ⌀25mm (round) or 16x16mm (dome) |
| LED Source | SMD 2835 multi-row |
| Power | 10W / 14W / 18W per meter |
| Voltage | DC 24V |
| Color Options | Single Color / RGB / Digital |
| IP Rating | IP65 / IP67 / IP68 |
| CCT Range | 2700K – 6500K |
| Beam Angle | 360° / 270° |
| Bend Radius | Min 40mm – 80mm |
| Bend Direction | Multi-directional |
| Cutting Unit | 50mm / 100mm |
| Housing Material | Silicone |
| Operating Temp | -30°C to +50°C |
| Lifespan | 50,000 hours |
| Certification | CE, RoHS |
LED Neon Flex vs Traditional Glass Neon
Why modern projects choose LED neon flex over glass neon
| Feature | LED Neon Flex | Glass Neon |
|---|---|---|
| Material | Flexible silicone/PVC | Fragile glass tube |
| Safety | 12V/24V DC, shatterproof | High voltage (3-15kV), breakable |
| Energy Use | 70% less than glass neon | High power consumption |
| Lifespan | 50,000 hours | 10,000 – 15,000 hours |
| Flexibility | Bendable in any direction | Fixed shapes only |
| Installation | Easy DIY, clips or channels | Specialist installation required |
| Maintenance | Virtually none | Frequent (gas leaks, breakage) |
| Waterproof | IP65-IP68 standard | Not inherently waterproof |
| Color Options | RGB, RGBW, addressable, any color | Limited by gas type |
| Cost | 30-50% cheaper overall | Expensive (material + installation) |
LED Neon Flex Installation Guide
Key considerations for installing LED Neon Flex in engineering projects:
- Mounting method — Use aluminum mounting clips or channels for secure, even installation. Stainless steel clips for outdoor use
- Cutting & joining — Cut at marked points only. Use waterproof connectors for outdoor splicing. Re-seal cut ends with silicone end caps
- Minimum bend radius — Never bend tighter than the specified minimum. For tight corners, use corner connectors instead of forcing the neon
- Power supply — Calculate total wattage and add 20% safety margin. Use Meanwell HLG series for outdoor projects
- Waterproof connections — All outdoor joints must use IP67+ waterproof connectors. Apply marine-grade silicone sealant at connection points
Bridge & Facade
Recommended: Top View 10x20mm, IP67, RGB. Use aluminum channels with stainless clips. Meanwell HLG power supply. DMX controller for dynamic scenes. See facade case
Signage & Letters
Recommended: Top View 6x12mm, single color. Slim profile for tight letter shapes. Min 20mm bend radius. Silicone housing for outdoor signs.
Landscape & Garden
Recommended: Side View IP68, RGBW. Ground-level contour lighting. Full waterproof rating for rain and irrigation exposure. 24V for long runs. See landscape case
