Product Overview

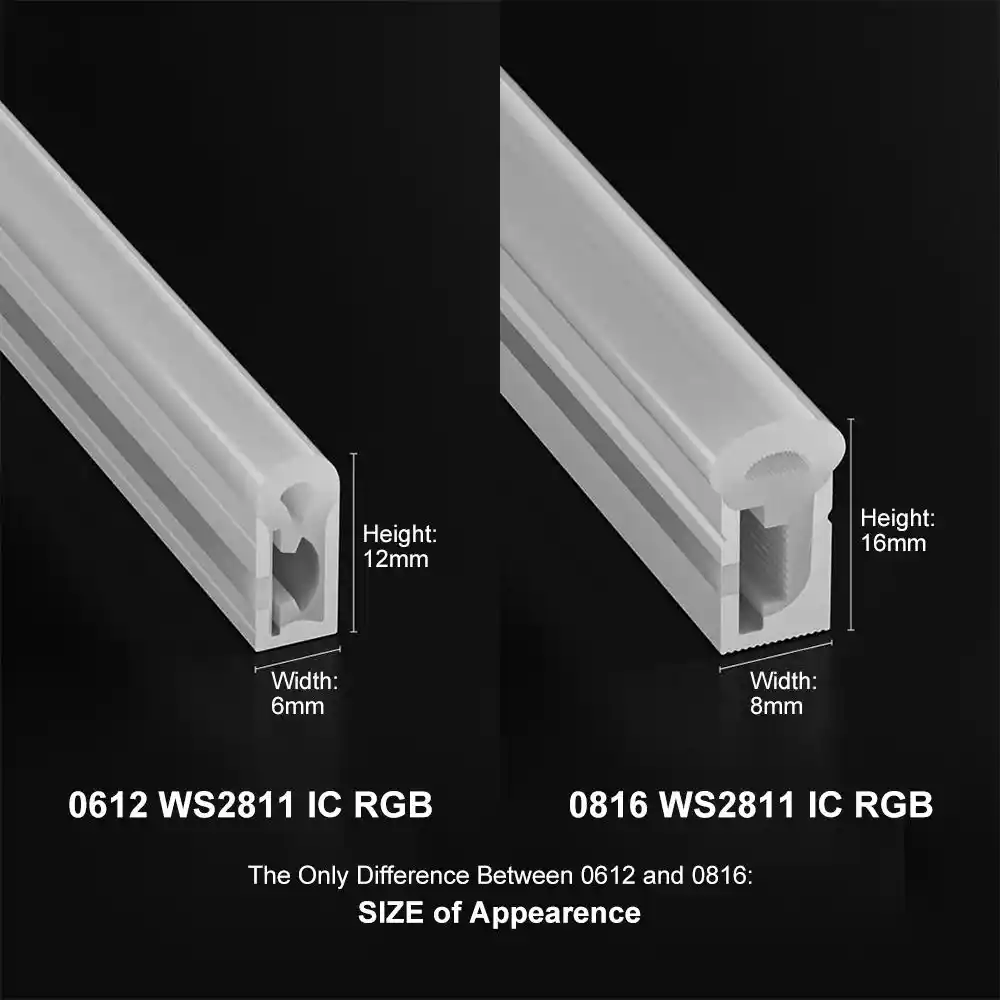

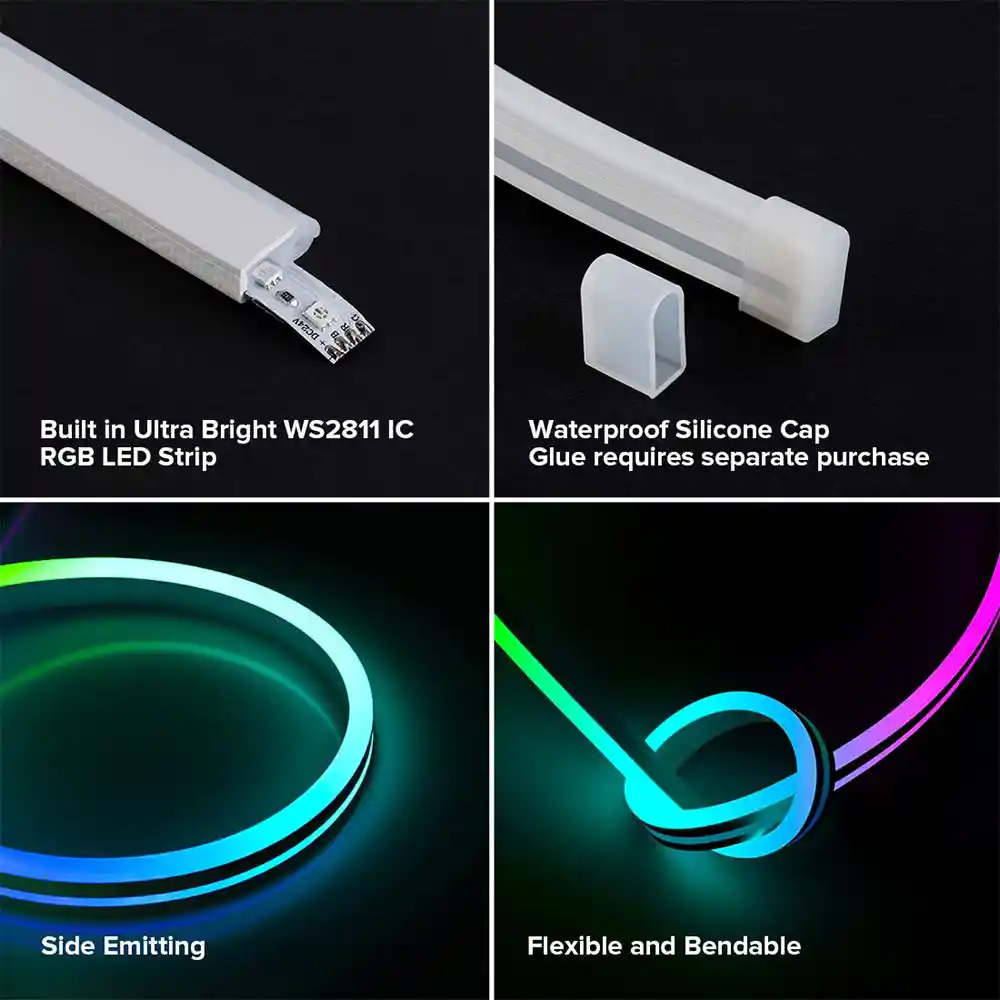

The Senfey ES-NEON-PIXEL-01 is a pixel neon strip: individually addressable RGBIC pixels sealed inside a dotless silicone body, built in 6 × 12 mm (12V) and 8 × 16 mm (24V) profiles. Each pixel group carries its own address, so the strip runs true chase, flow and music-sync scenes and accepts DMX pixel mapping — behaviour no 3-channel RGB strip reproduces. Standard IC is WS2811 in 30 IC/m grouping. The jacket is the UV-stable pure silicone used across our LED neon flex range, so this is a true exterior fixture, not an indoor strip re-sleeved for outdoor duty.
| Profile | Per feed | Best fit |
| 6 × 12 mm | up to 5 m | indoor cove, retail, bar |
| 8 × 16 mm | up to 10 m | outdoor facade, long perimeter |
Best For — Which Projects This Fits
Dynamic hospitality and entertainment. Bar counters, DJ booths and restaurant feature walls needing a chase or music-sync scene rather than a static wash. Specify the 6 × 12 mm profile — it beds into a slim 10 mm cove channel with the silicone shoulder still proud of the aluminium.

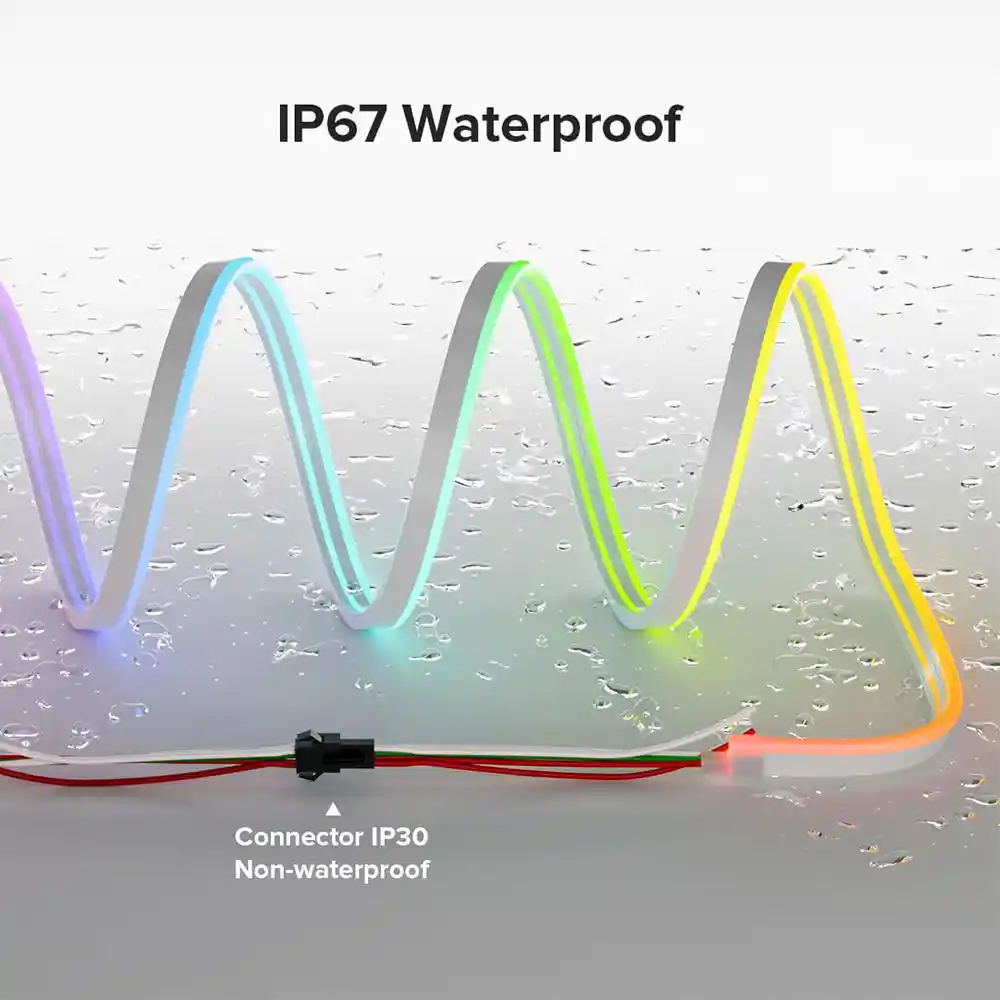

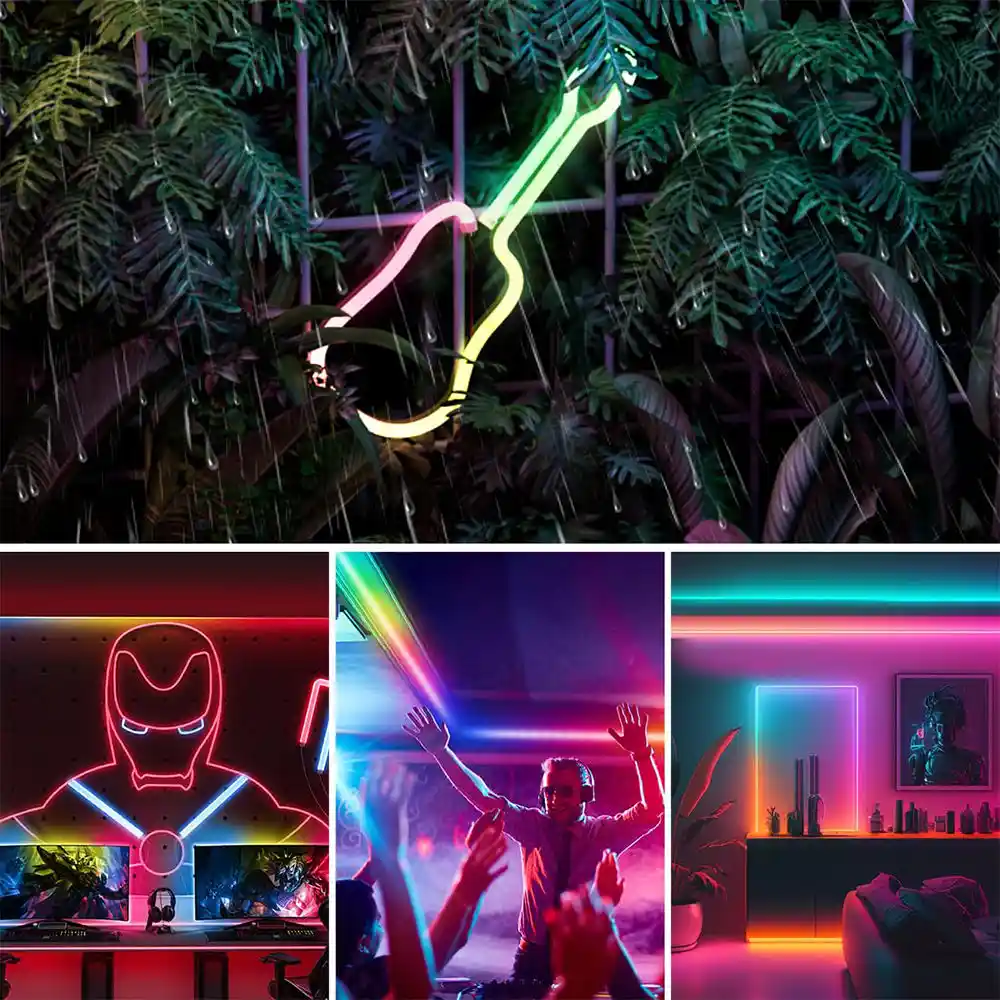

Outdoor architectural pixel work. Perimeter columns, canopy trims and signage borders animated from one controller. The body side-bends in the plane of the lit face, tracking a curved column or arch without the pixels twisting out of line; it will not bend on the vertical axis, so step changes need a moulded corner. IP67 silicone takes driven rain, and the 8 × 16 mm profile holds pixel colour to the end of a 10 m sub-loop — the wiring pattern on our outdoor façade project.
Retail and shopfront outlines. The dotless jacket reads as one continuous line at window distance, with no visible pixel grid — the usual giveaway on bare addressable PCB behind a clear cover.
Mapped installations. A run works as one segment of a larger DMX or Art-Net pixel map — send your universe count.
Not For — When to Ask Us for a Different SKU
Skip this SKU on a fixed-colour cove or single-CCT architectural line: the pixel controller, data wiring and commissioning are all effort the client never uses. Ask us for single-colour silicone neon from the single-colour neon flex range. Skip it for three-channel colour on a handheld remote — a common-anode RGB neon rope light commissions in minutes with no data polarity to get wrong. Skip it for permanently submerged work such as pool coping: IP67 covers rain and splash, not immersion — ask about a fully potted build. And skip it where there is no SPI or DMX controller on site, since pixel runs need matched data direction and an amplifier roughly every 5 m.
Customization & Inquiry

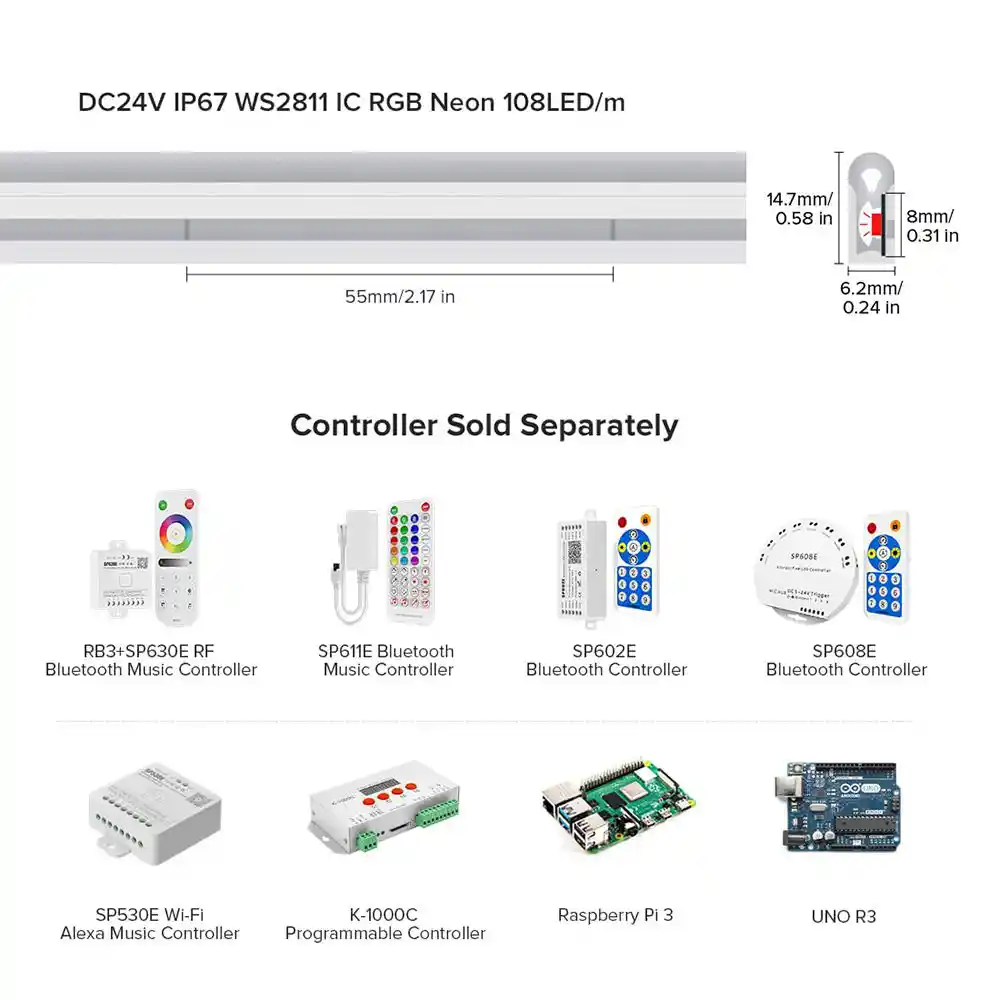

Built to project spec: IC family (WS2811 / WS2812B / WS2814 / SK6812), pixel grouping from 30 to 120 IC per metre, either body size, cut-to-length runs with factory-fitted end caps, and a matched SPI or DMX-512 controller. What to send us in your enquiry:
- Total metres and the longest unbroken run — this sets injection points
- The controller or IC family your integrator works with (SPI / DMX / Art-Net)
- Indoor, covered outdoor or fully exposed, and how it mounts
- Destination country and driver certification (CE / UL / SAA / PSE)
Send Us Your Project Brief — our sales engineer returns an IC recommendation, pixel-map notes and a matched controller spec.
