LED Strip Lighting for Hotel Projects
We supply pre-configured LED strip systems to hotel construction and refurbishment projects — guest rooms, lobbies, façades, pools and back-of-house. Floor plans in, labelled boxes out.
Request Project Quote Hotel Project ResourcesWhat Hotel Projects Order From Us
Across the last 47 hotel deliveries, 84% of the bill of materials looked like this — we mention it because most enquiries we receive are missing one of the four:
- Strip: COB 480 LED/m, CRI 95+, 2700K, 24V, 10mm — guest-room and lobby coves.
- Profile: Recessed aluminium with frosted PMMA diffuser, 17×8 mm — cut to length per drawing.
- Driver: Meanwell HLG / ELG series or our SELV Class 2 PSU, sized at 80% load.
- Control: DALI-2 DT8 gateway, pre-programmed scenes shipped on the device.
Façade, pool and signage lines are added per project — see the zone selector below.
Zone Selector: What to Specify Where
The strip type that fails in a hotel project is almost always the wrong one for the zone, not a defective one. Quick reference:

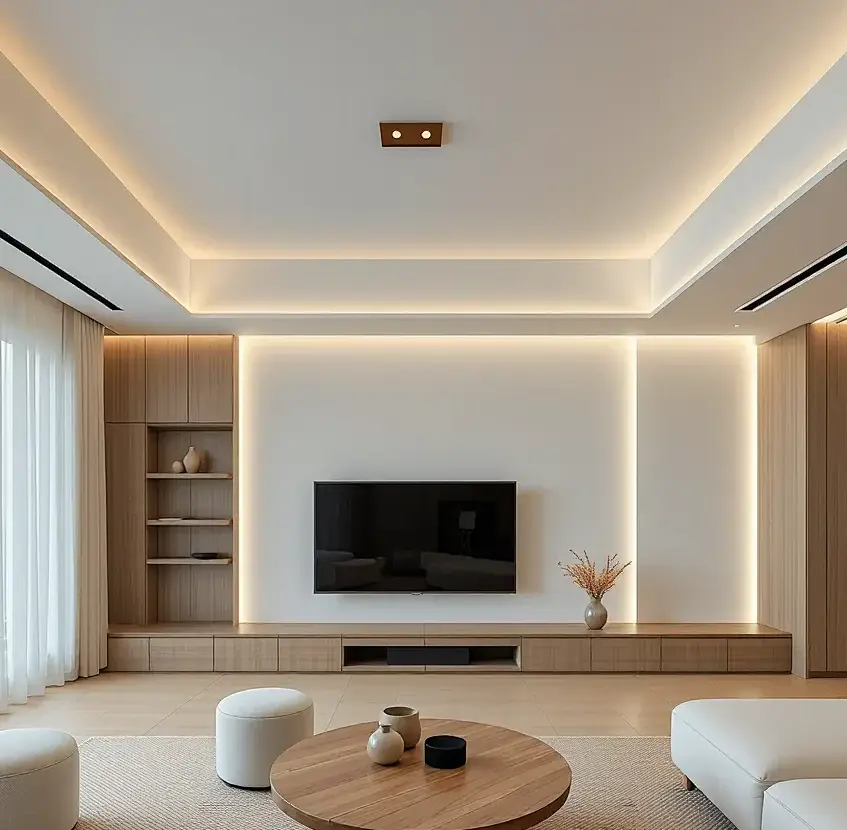

Guest-room cove & mirror
Dot-free, high CRI, dimmable to 1%.
COB 480 LED/m · CRI 95+ · 2700K · IP20Lobby ceiling & corridor
Long uninterrupted runs, tunable white.
COB 320 LED/m TW · 24V/48V · DALIBar, lounge, ballroom
Scene-setting colour + white in one strip.
SMD 5050 RGBW · DMX512 · 96 LED/mSpa, pool, jacuzzi
Submersible / splash-zone certified.
Silicone Neon Flex · IP67/IP68 · UV-stableFaçade & outline
10-year outdoor life, even bend radius.
Neon Flex side/top bend · IP68 · 2-pinSignage & channel letter
Crisp, high-brightness, side emission.
Side-bend Neon Flex · 12V/24VFeature ceiling / media wall
Pixel control via Art-Net / Madrix.
Addressable WS2815 · 60 px/mStairs, skirting, BOH
Safety lighting, low glare.
SMD 2835 · 60 LED/m · 4000KBrowse the underlying products: COB · SMD · Neon Flex · Addressable · Drivers & Profiles
Hotel-Grade Specification Floor
The minimum spec we ship for front-of-house in a 4–5 star property. Anything below this we've seen come back as a complaint:
| Parameter | Front-of-house | Why it matters |
|---|---|---|
| CRI (Ra) | ≥ 95 | Skin tones, fabrics, food photography |
| R9 (deep red) | ≥ 50 | Wood, leather, red wine look correct |
| MacAdam SDCM | ≤ 3 step | No visible colour shift between strips on the same wall |
| Flicker (PstLM) | ≤ 1.0 | TIVO / Apple TV cameras don't ghost |
| L70 lifespan | ≥ 50,000 h | ~11 years @ 12 h/day before lumen drop |
| Driver class | SELV Class 2, low THD | BMS compliance, no buzz on dimming |
| Warranty | 3 yr full system | Covers strip + driver + controller together |
What's in the Box When We Ship
Every hotel project leaves the factory the same way. This list is what removes site-day surprises:
- Strip cut to exact length per drawing, lead-in cable soldered, labelled per room/floor/zone
- Driver sized at 80% load with matched DALI/DMX/0-10V interface
- Aluminium profile cut, end caps and mounting clips bagged per run
- Wiring diagram per electrical circuit (PDF + printed in box)
- Photometric IES/LDT files emailed at PO confirmation
- Pre-programmed control gateway with scenes (Welcome / Day / Dinner / Late-night / Cleaning)
- Spare strip allowance: 5% per CCT, kept in your warranty stock
Control Protocols We Pre-Program Before Shipping
Listed in order of frequency we deliver them in 2024–2025: DALI-2 DT8 (62% of projects) · DMX512/RDM (18%) · 0-10V (9%) · KNX (6%) · Tuya / Zigbee (3%) · Art-Net / sACN (2%). On-site commissioning averages 11 hours per property because the gateway arrives configured. If your BMS integrator needs a specific protocol, send us the spec at quote stage — we'll confirm gateway compatibility before PO.
Recent Hotel Installations
Aman Tokyo
Guest-room and lobby cove. COB 480 LED/m, 2700K, DALI-2 DT8.
The Opus ME · Dubai
Zaha Hadid building. Façade + interior architectural strip.
Crown Sydney
Façade neon flex + suite cove. Full system supply.
Hotel Project Resources
Hotel Case Study Book (PDF)
12 recent hotel projects with product specs and site photos. Replace href with your real PDF URL after publishing.
COB Strip Specifications →
Full technical data for the strip used in 84% of hotel guest-room coves.
Drivers & Controllers →
DALI / DMX / 0-10V gateways and Meanwell PSU options.
Full Hotel Project Library →
Browse every hotel, mall and architectural project we've shipped.
5 Questions Hotel Buyers Actually Asked Us This Year
"Your CRI 95 looks the same as competitor X's CRI 95. How do I know it actually performs?"
CRI alone isn't enough — ask for the R9 value, the SDCM bin, and a sample from the production batch you'd receive, not a marketing sample. We send batch samples cut from the same reel that will ship to your project, with the test report attached.
"We've had strip-to-strip colour mismatch on the last project. How do you prevent it?"
We bin every LED batch to ≤ 3-step MacAdam and reserve stock per project at PO. Subsequent project shipments draw from the same reserved bin until your project is closed. The single-batch reservation is the part competitors usually skip.
"What MOQ for a 120-room boutique refurb?"
No project MOQ. Smallest hotel order shipped in 2024 was 480m. OEM (your label) MOQ is 500m per CCT.
"Will it integrate with our existing BMS / DALI bus?"
Send us the BMS spec at quote stage. We supply DALI-2 DT8, KNX, DMX, 0-10V and Art-Net gateways and pre-program scenes before shipping. Average on-site commissioning across the last 47 projects was 11 hours.
"What's the actual lead time, not the marketing lead time?"
Stock-spec strip: 7–10 working days ex-works. Custom CCT / cut-and-label project order: 18–25 days. Mock-up sample kit: 5 days. We block production capacity at PO so the lead time on the quote is the lead time you get.
Send us the floor plan.
We return BOQ, photometric files and a mock-up sample within 5 working days. One PO, one shipment, one warranty.
