Project Overview
A boutique hospitality operator refurbishing a small property in Valencia asked us to spec a hotel cove lighting COB LED strip package covering its lobby, guest-floor corridors, and 22 refurbished guest rooms. The design brief called for a dotless warm-white line with a deliberate shift between public and private zones — 3000K in shared circulation, 2700K in bedrooms — and asked us to keep on-site rework to a minimum during a five-week fit-out window.
Scope at a glance: Approx. 320 meters of strip across three zones, 24V constant-voltage drivers stored above accessible ceiling panels, and a 25 mm × 18 mm aluminum channel with frosted polycarbonate diffuser recessed into a crown-shadow gap. Public-area color rendering was specified at CRI ≥ 90, comfortably above the minimum color-rendering index (Ra) that EN 12464-1 sets for hotel reception and circulation spaces. Every run was kept IP20 because the cove sits inside a dry, enclosed joinery pocket.
Three COB Strips for Three Cove Zones
Instead of standardizing one density across the property, we specified three COB SKUs — one per zone. The reason is optical, not commercial: cove depth and viewing distance change zone by zone, and matching LED density to the geometry is what keeps the light line dotless.
| Zone | Product | Selection Reason |
|---|---|---|

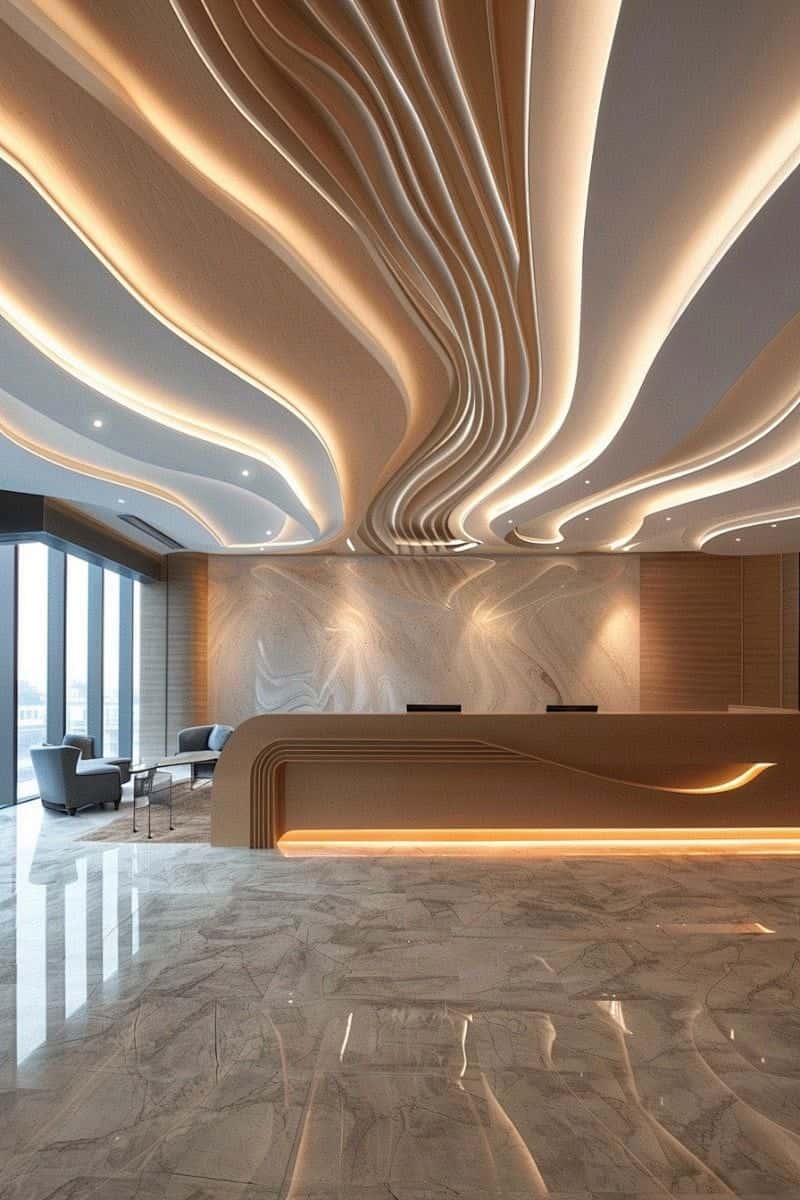

| Lobby cove (double-height perimeter) | COB LED Strip 480LEDs/m 8mm 24V | 480 LEDs/m at 3000K gives a smooth surface from the taller viewing distance while keeping the 8 mm PCB inside a narrow crown gap. |

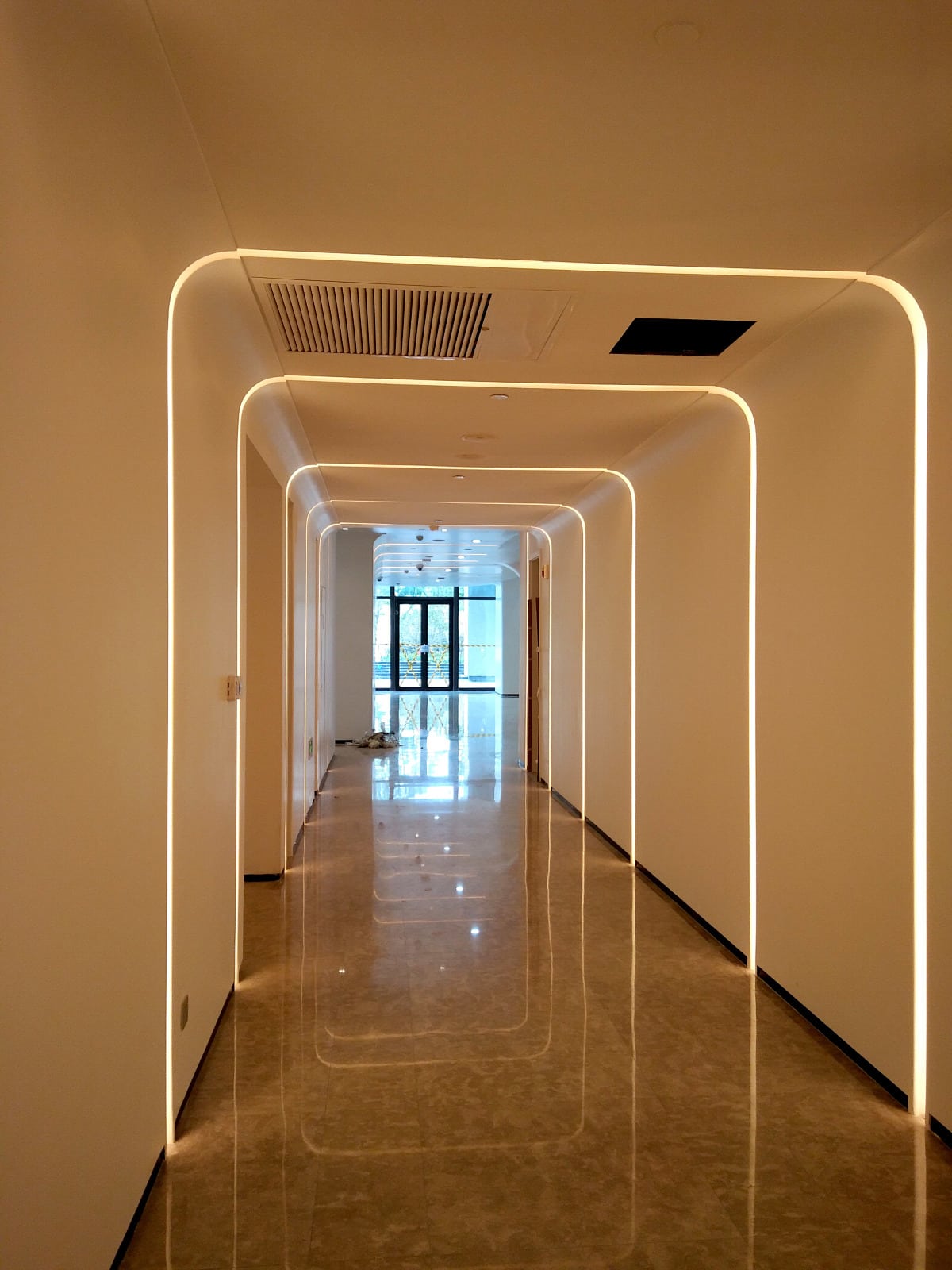

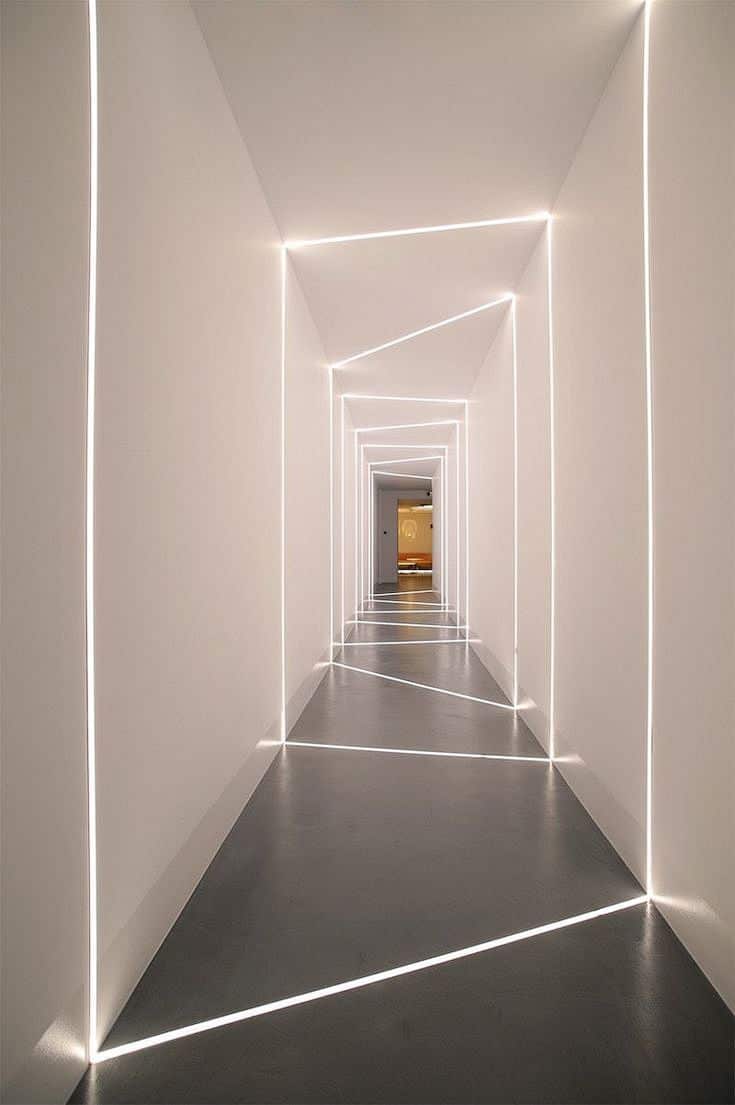

| Guest-floor corridors (continuous cove) | the 528 LEDs/m 10mm SKU | Higher density preserves the dotless surface across the longer, uninterrupted corridor; the 10 mm PCB tolerates repeated 24V injections cleanly. |

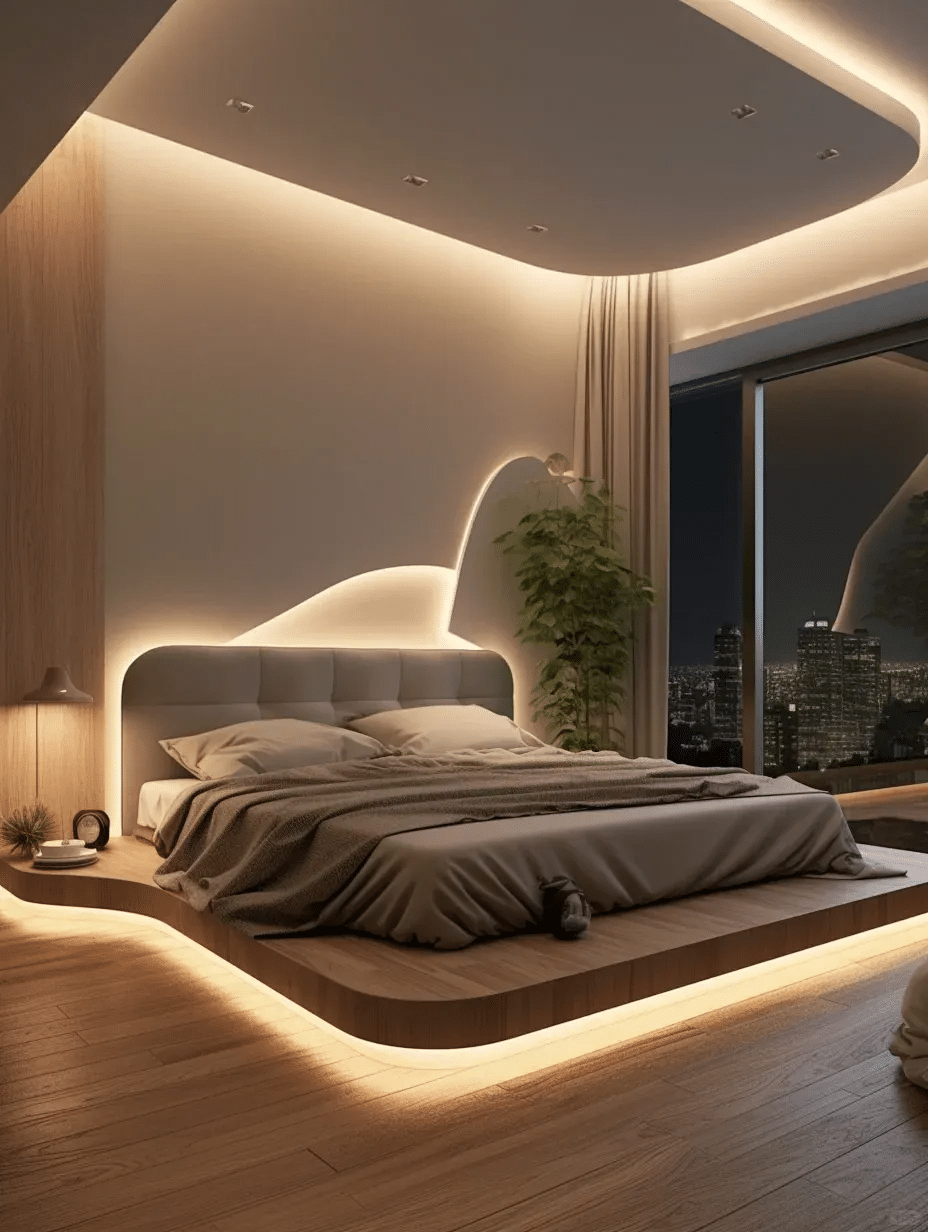

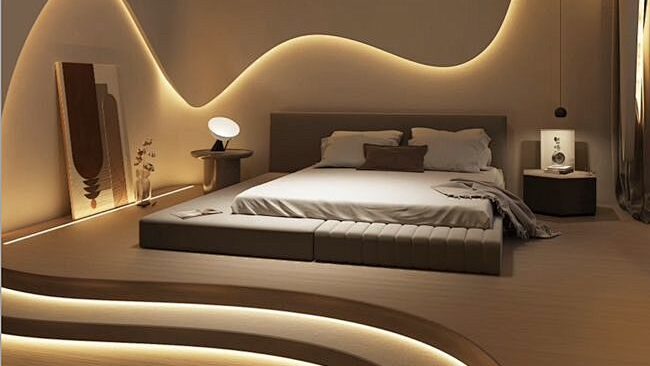

| Guest rooms (headboard + wardrobe cove) | COB LED Strip 320LEDs/m 8mm 12V/24V, 2700K | Warmer 2700K bin and lower density suit close-range in-room viewing; 320 LEDs/m keeps guest-room power draw modest. |
| Accessories | 24V constant-voltage drivers + solderless connectors + aluminum profile with frosted PC diffuser | Frosted diffuser hides individual chips at close range; drivers sited above ceiling access panels for maintenance. |
All three reels share CRI 90 and a matched white bin, so the corridor-to-guestroom transition reads as a warmth shift rather than a color-quality shift. If you’re comparing voltage options, you can browse the 24V lineup for other density and CCT choices.
The Four Calls That Shaped the Corridor Run
Four issues shaped this warm-white cove line: how often to inject 24V on the corridor, how to justify IP20 on the submittal, where to slot strip mounting into the wet-trades sequence, and how to hold color consistency across three SKUs. Approx. 28 m of continuous corridor cove per guest floor risks visible dimming at the far end of a single feed.
| Challenge | Solution |
|---|---|
| Voltage drop across long corridor runs | 24V feed injected every 10 m; measured voltage drop kept under 5% end-of-run, verified with a clamp meter on a floor-2 mock-up before mass install. |
| IP rating alignment for the submittal | IP20 accepted only after confirming the cove sat inside a dry, enclosed joinery pocket; IP classes referenced per IEC 60529. |
| Dust ingress on adhesive backing | Strip mounting scheduled after the joinery team closed the crown-shadow gap and before the plasterer’s final skim, keeping airborne gypsum dust off the adhesive backing. |
| CCT consistency between public and private zones | Same CRI 90 white bin ordered across three SKUs so the 3000K → 2700K transition reads as warmth, not a quality drop — aligned with color-rendering guidance from CIE. |
What We Handed Over on Floor 2
On the floor-2 sample wall the client approved the 480 LEDs/m lobby profile after one adjustment: the diffuser was swapped from clear to frosted PC to eliminate a faint chip shadow at 1.5 m viewing distance. That single change was the reason we build a mock-up at all — it costs a metre of strip to discover, and a whole ceiling to fix afterwards. The final property runs Approx. 320 meters of the hotel cove lighting COB LED strip specification across all three zones, with Approx. 12 drivers distributed above accessible ceiling panels. Output along the corridor coves reads evenly from end to end, with no visible hot spots and no dark tail at the far end of any run.
If You’re Planning a Similar Hotel Cove
- Don’t standardize one density across public and private zones — match LED density to cove depth and viewing distance instead.
- On any single-feed cove longer than roughly 10 m, plan a 24V injection point in advance; retrofitting an injection after ceiling closure is the expensive path.
- Order every zone’s reels from the same CRI and white-bin batch. A cove strip system that mixes bins across a corridor reads as a mismatch even at CRI 90.
- Sequence strip mounting between joinery and final wet trades. Adhesive backing only survives the site if the pocket is closed and clean.
- Sample a 2–3 m mock-up before mass install; diffuser choice (clear vs frosted PC) is easier to change on a sample than on a finished ceiling.
For a similar refurbishment, send drawings through our project quotation form — we ship reels from the same production batch used in the mock-up, so what you sign off is what arrives.
