Product Overview
The Senfey ES-PA-12030A fills the gap the 12V range is most often specified into: a 24W adapter runs out at 2.7 m of 7.2 W/m strip, and a 60W case is deeper than most cabinet carcasses leave free behind the panel. At 36W nameplate this unit carries 4 m of 12V 7.2 W/m strip on 80% de-rating — the length a single cabinet bank, vanity or mirror surround comes to once measured. Universal 100–240V AC input, and the barrel jack lands straight on a 12V pigtail.
| Input | 100–240 V AC, 50/60 Hz |

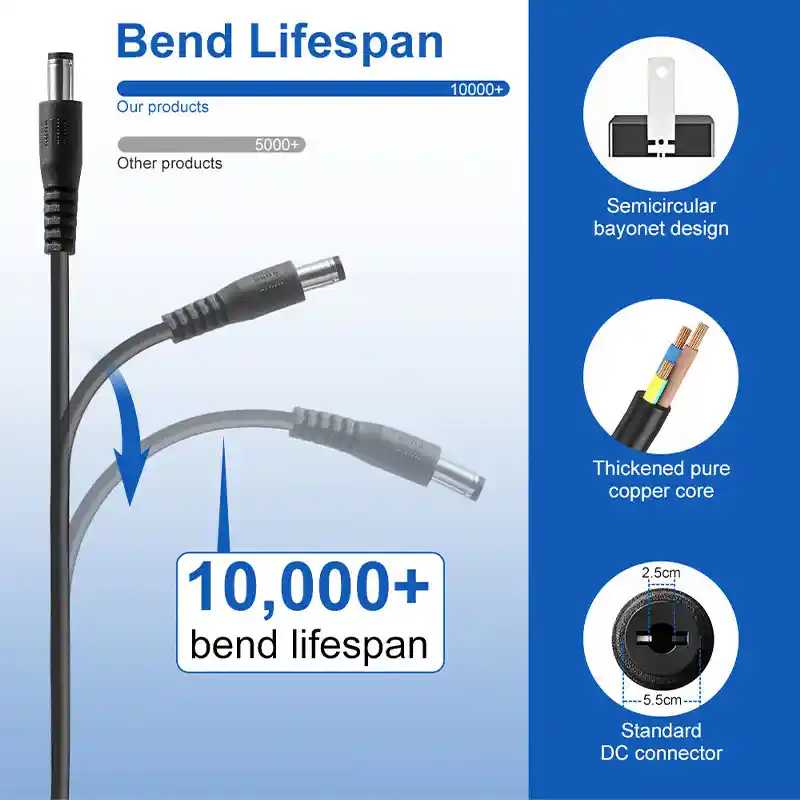

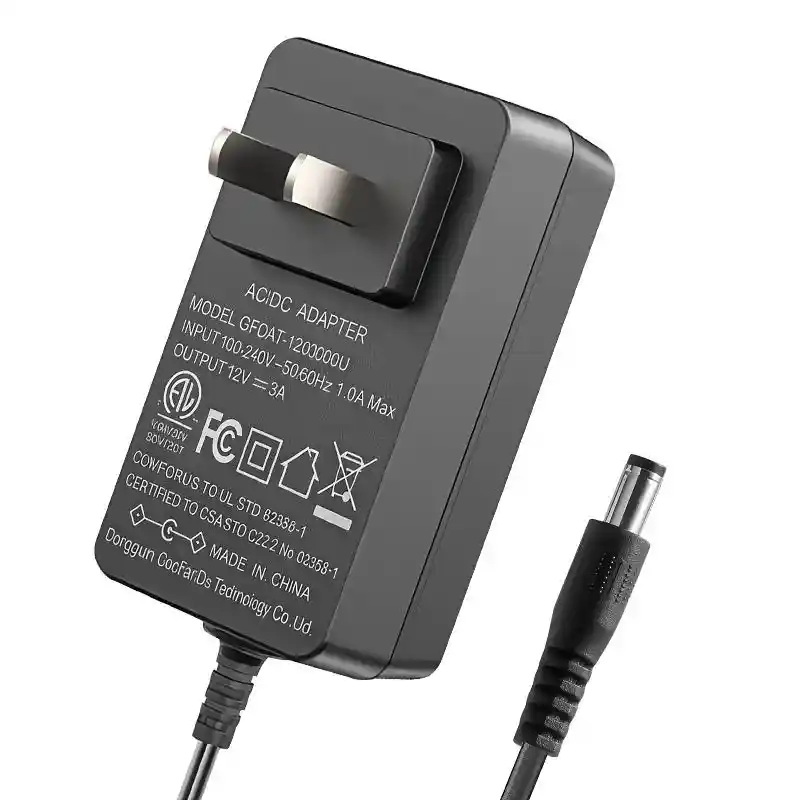

| Connector | DC 5.5 × 2.1 mm barrel plug (male) |
| Protection | Short-circuit, over-current, over-voltage |
| Certifications available | CE / FCC / PSE / KC / SAA on OEM builds |
Best For — Which Projects This Fits
Usable output is about 29W, so this is the single-zone driver — one cabinet bank, one mirror, one alcove, sized once and forgotten.
- Single-zone joinery up to 4 m at 7.2 W/m — a kitchen island underside, one wardrobe interior, a vanity run. See cabinet strip installations for typical lengths per zone.
- Hotel mirror and bedside details, where the adapter hides inside the mirror frame or headboard void and the pigtail reaches 2–3 m to the strip. The 36W case fits voids the 60W will not.
- Multi-zone jobs wired as separate circuits — four bays on four small adapters isolates a fault to one bay, instead of dropping the whole elevation on one large supply.
- Showroom and demo rigs for our strip connector range, with headroom for a 4 m loop and an inline dimmer.
Not For — When to Ask Us for a Different SKU
Three mismatches to catch before the order goes in. (1) High-density or full-room loads. Five metres of 12V 14.4 W/m draws 72W and needs a 90W-class supply — take the 96W adapter, not this one; the power supply selection guide sets out the tiers. (2) Wrong bus. This is 12V constant-voltage: not for 24V, RGB / RGBW / RGBCW, 5V addressable, or AC line-voltage LED. (3) Wrong environment. IP20 dry-indoor housing, so outdoor signage or a wet cove needs a sealed driver — ask what we can supply for that circuit. Also non-dimmable: for 0-10V, DALI or Triac control specify a dimmable driver, or put a PWM dimmer such as our inline single-colour dimmer downstream.
Customization & Inquiry

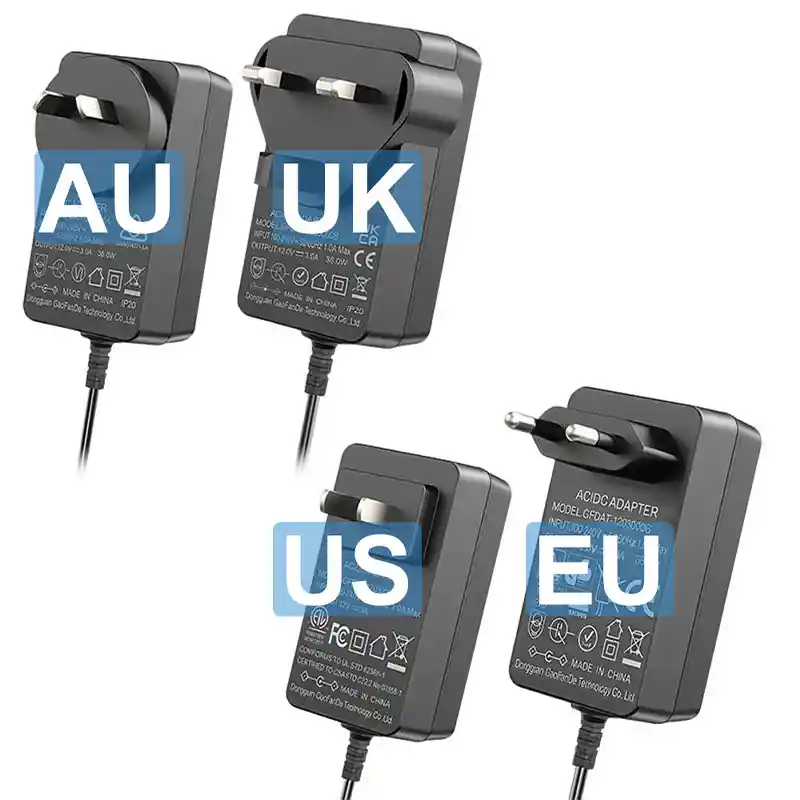

OEM builds cover branded housing and label, plug heads for US / EU / UK / AU / IN / JP, custom cable lengths, alternative barrel sizes and certified builds for regulated markets — part of our 12V SMD strip driver line.
What to send us in your enquiry: metres per zone and how many zones, so we can confirm 36W per zone is right; the void the adapter has to fit, since this tier is chosen on case size as often as on watts; the termination you need at the strip end, whether barrel jack, bare pigtail or screw terminal; and your destination markets with the plug-head standards and certification package required.
Talk to Our Sales Engineer to lock the wattage per zone, case size and certification build.
