Product Overview
The ES-2835-60-8MM is the entry-density build in Senfey’s SMD strip range, and one figure governs where it can be used: at 60 emitters per metre the gap between them is roughly 17 mm, so a diffuser has to sit at least that far off the board before the dots read as a line. Given a channel deep enough for that, low density stops being a compromise: a metre draws a fraction of what a dense board does, so one driver feeds a much longer run before capacity or voltage drop forces a break — on a long commercial ceiling, fewer drivers and fewer injection points.
Best For — Which Projects This Fits
- Office, corridor and commercial ceilings lighting indirectly, where the diffuser sits deep enough in the channel to blend the spacing.
- Long perimeter runs fed from few supply points — the low draw per metre is what buys the distance.
- Distributor programmes reordering the same specification, where matching the previous delivery matters more than headline output.
- General duties: circulation, indirect ceiling wash, secondary light in a layered scheme.
- Standard 10 mm channels and CNC grooves, taking the 8 mm board with adhesive clearance each side.
Not For — When to Ask Us for a Different SKU
Direct view is the hard limit. Any cove seen straight on, any close-range joinery, any fixture without a diffuser will show 60 discrete points rather than a line — those positions need a dotless COB build, and our COB vs SMD comparison sets out where the boundary falls. Output is the second limit: this density suits indirect and secondary light, not corridors with an illuminance target to meet, task areas or wall-washing, all of which need a denser board from our SMD LED strip guide. At CRI 80 the strip renders general light properly but is the wrong tool where colour fidelity is judged — merchandise, food or artwork. It is also IP20 and single-colour, so nothing damp, exterior or colour-change.
Customization & Inquiry

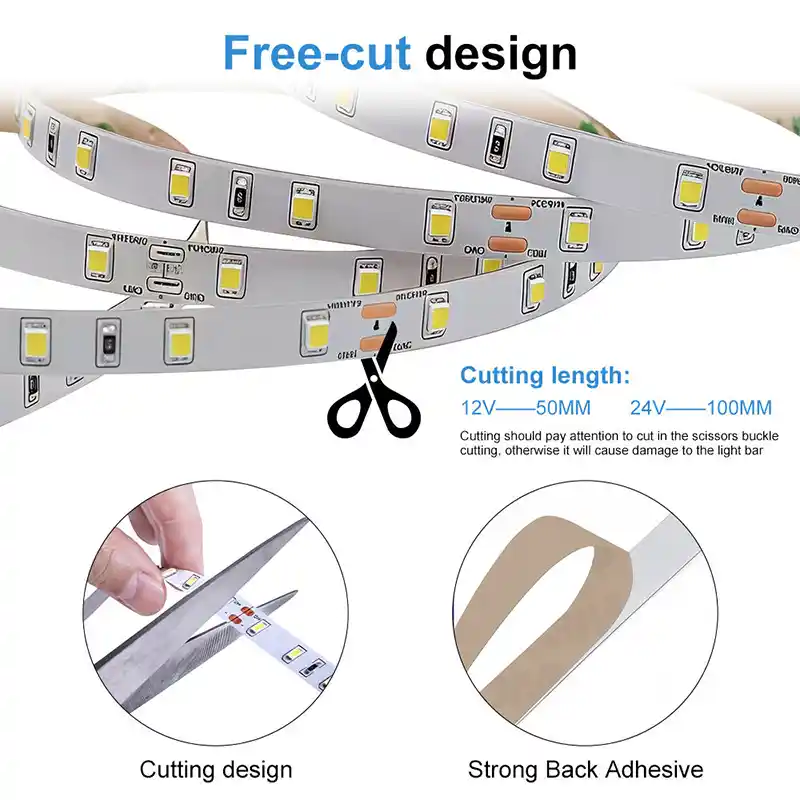

On a repeat-order SKU the risk is not the first delivery but the second: a strip that ships from a different CCT bin will not match what is already installed, and on a phased fit-out the difference shows up across a ceiling. So we hold the bin against your reference and record it against the order, rather than shipping to a nominal CCT. Cut points follow your setting-out, leads are pre-soldered to the length you nominate, and we can build under your own label. To quote, send us: (1) total metres and voltage, (2) target CCT and any tolerance you have to hold, (3) the longest single run per driver, and (4) the channel or diffuser reference. Talk to Our Sales Engineer.
