One Barangaroo (Crown Sydney) — luxury residential LED system

Project Overview

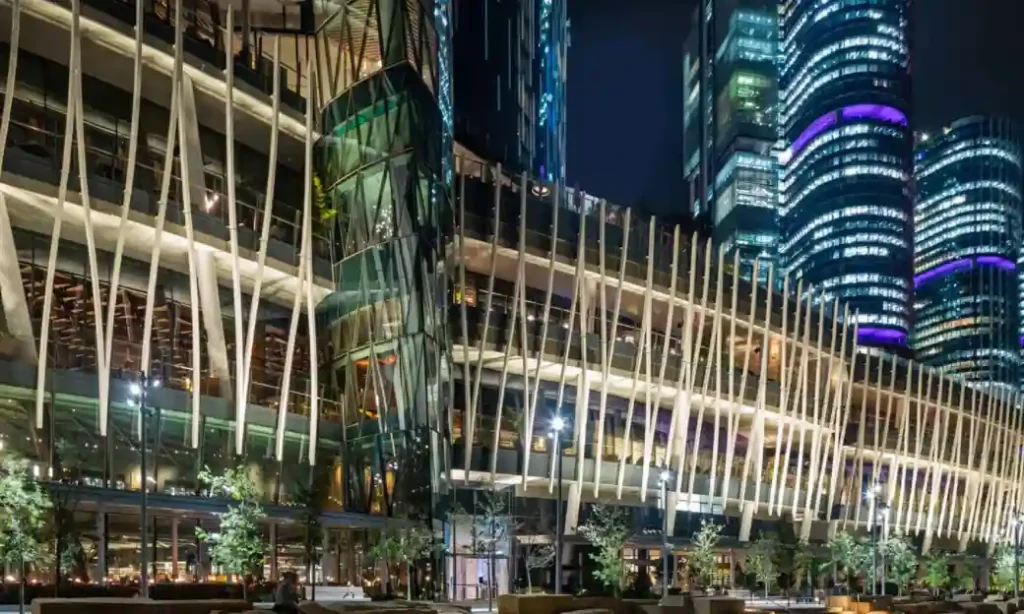

This luxury residential LED system delivers 10,500 meters of premium tunable white illumination across Sydney’s tallest residential tower — a 71-floor architectural landmark that has redefined the Barangaroo waterfront skyline. The installation encompasses the building’s signature twisted facade perimeter lighting that accentuates its sculptural form at night, residential lobby and corridor cove lighting, full amenity floor systems including infinity pool, spa, and sky lounge, plus podium landscape integration with the adjacent Barangaroo Reserve parkland. Moreover, Senfey implemented smart LED lighting Casambi mesh control throughout 349 individual apartments, providing each resident with personal wireless lighting control via smartphone while maintaining building-wide management capability for the facilities team. The luxury residential LED system uses tunable white technology (2700-5000K) to deliver appropriate ambiance across diverse spaces — warm tones in residential areas and cooler temperatures in amenity and circulation zones. Consequently, One Barangaroo operates as one of Australia’s most sophisticated smart LED lighting Casambi deployments, with 1,200 Bluetooth mesh nodes creating a seamlessly connected building-wide lighting network from podium to penthouse.

Client Requirements & Challenge

The tower’s distinctive twisted geometry means each floor plate rotates incrementally from the one below — consequently requiring different facade strip lengths calculated individually for every single floor of the 71-story building. Sydney’s coastal winds frequently exceed 100 kilometers per hour at elevation, therefore demanding extreme mechanical fixing security for all components mounted at the building’s 275-meter maximum height. Furthermore, the smart LED lighting Casambi networks serving 349 individual apartments needed complete isolation from common area systems to prevent resident interactions while still allowing building manager override capability for maintenance and emergency scenarios. SAA and AS/NZS compliance documentation was mandatory for every component, with the certifying authority requiring witnessed testing of marine-grade brackets under simulated wind load conditions per AS1170.2 before approving the facade installation. In addition, the luxury residential LED system needed to operate alongside multiple other smart home platforms chosen by individual apartment purchasers, requiring careful Bluetooth frequency management to avoid mesh network interference.

Senfey Solution

Senfey pre-cut facade strips to exact per-floor lengths calculated from BIM rotation data — each of the 71 floors received uniquely dimensioned strip segments labeled for their specific location, eliminating on-site measurement errors at dangerous heights. Marine-rated 316L stainless steel mounting brackets withstand certified wind loads per AS1170.2, specifically tested to 150 km/h sustained force with 200 km/h gust factor at 275 meters elevation. The smart LED lighting Casambi architecture uses a dual-layer mesh topology that provides apartment-level independence — residents control their own lighting via the Casambi app without any interaction with neighboring units, while 16 Casambi Gateway PRO units give the building management team complete override capability and real-time monitoring from a centralized dashboard. All 1,200 Casambi CBU units carry SAA/RCM certification with complete Australian compliance documentation delivered to the certifying authority. Furthermore, the luxury residential LED system’s tunable white capability enables the building manager to program seasonal common-area scenes that adjust automatically, while individual residents personalize their apartment lighting to suit their preferences. Senfey provided comprehensive commissioning across all 349 apartments over a 10-week delivery program coordinated with Lendlease’s staged settlement schedule.

System Specification
