ICD Brookfield-Building Facade LED Strip

Project Overview

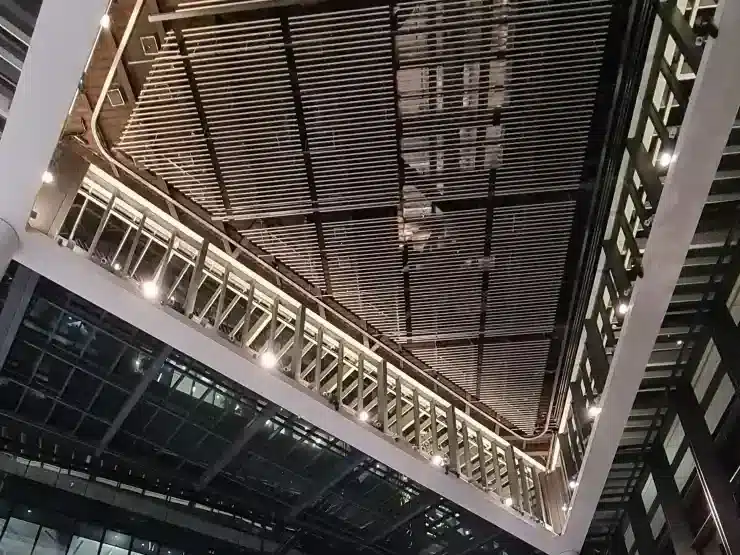

This building facade LED strip installation delivers precision linear lighting integrated into the distinctive angular facade fins of Dubai’s tallest DIFC commercial tower. The project encompasses 16,200 meters of LED strip across the exterior diamond-pattern facade system, interior lobbies, sky bridges connecting both towers, and all common circulation areas throughout 53 floors. At night, the building facade LED strip accentuates the geometric diamond pattern that defines ICD Brookfield Place’s architectural identity, visible from Sheikh Zayed Road over 2 kilometers away. Moreover, interior spaces benefit from warm 3000K cove lighting that creates welcoming environments for the 15,000+ daily occupants across premium office floors. Senfey specifically engineered every component to operate reliably in conditions where LED strip for extreme heat tolerance becomes the primary design constraint — with metal facade surface temperatures regularly exceeding 70 degrees Celsius during Dubai summers. The installation demonstrates that high-performance facade lighting systems can operate continuously in extreme desert climates without thermal derating or premature failure.

Client Requirements & Challenge

The facade’s angular metal fins required precise building facade LED strip integration without any visible mounting hardware — the architectural intent demands that observers perceive only light, never the source. However, Dubai’s extreme heat creates surface temperatures exceeding 70 degrees Celsius on sun-facing metal facade elements during summer months, therefore demanding exceptional thermal management from every component in the system. The LED strip for extreme heat applications needed validated performance data showing continuous operation at 75 degrees ambient without color shift or accelerated lumen depreciation. In addition, the DIFC district authority enforced strict aesthetic standards requiring perfect color temperature consistency across both towers as viewed simultaneously from the adjacent six-lane highway. Any perceptible CCT mismatch between Tower 1 and Tower 2 would result in compliance failure and mandatory correction. Furthermore, the electrical contractors needed to install all facade components from building management units (BMUs) operating at heights up to 260 meters, with installation windows limited to early morning hours before desert winds exceed safe working limits.

Senfey Solution

Senfey custom-manufactured angular aluminum profiles with integrated thermal management fins that mount flush inside the facade fin channels, completely concealing all mounting hardware from external view. Comprehensive thermal simulation using CFD modeling validated that the LED strip for extreme heat conditions operates continuously at 75 degrees ambient with intelligent thermal throttling that reduces output by only 8% at peak temperature — maintaining visual uniformity across the facade. The building facade LED strip system uses DALI-2 networked control across 12 master controllers with real-time CCT monitoring to ensure perfect color temperature matching between both towers at all times. IP65-rated enclosures protect every meter of strip against wind-driven sand and rain that characterize Dubai’s climate throughout the year. Consequently, the system has operated through two complete summer cycles with zero thermal failures and zero color drift beyond the 2-step MacAdam ellipse specification. Senfey additionally supplied 380 thermal-rated IP67 power supplies specifically designed for continuous operation at elevated ambient temperatures, eliminating the most common failure mode in conventional desert facade lighting installations.

System Specification
